Front wheelhousing liner

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

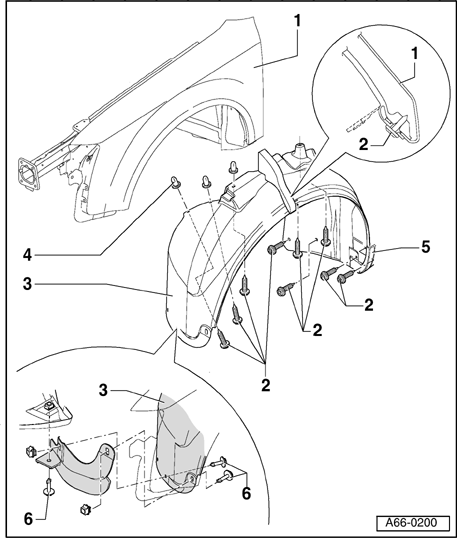

Fig 1: Front Wheelhousing Liner Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Fender

2 - Bolt

2.3 Nm

3 - Front wheelhousing liner

Remove front wheel before disassembly.
To disassemble, release quick-release screws - 6 -.
Unscrew bolts - 2 -.
Disengage wheelhousing liner from fender and pull downward and out.

4 - Expanding nut

5 - Sill panel cover

6 - Quick release screw
