Underbody covers: Notes

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

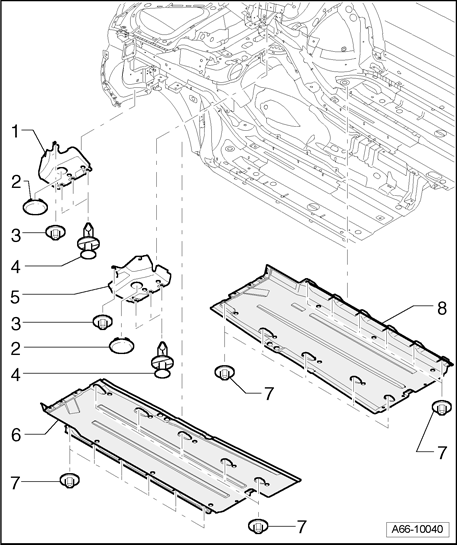

Front underbody cover

Fig 1: Underbody Covers (Front Underbody Cover)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Cd cover, right, front

2 - Cap for Cd cover

3 - Hex nut

2.3 Nm

4 - Expanding rivet

5 - Cd cover, left, front

6 - Right underbody cover

7 - Hex nut

2.3 Nm

8 - Left underbody cover

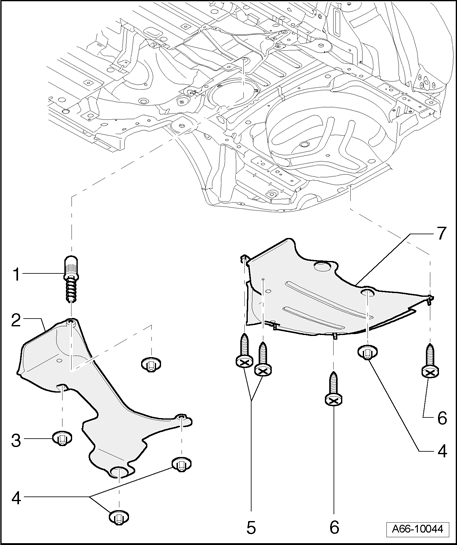

Rear underbody cover for Front Wheel Drive (FWD)

Fig 2: Underbody Covers (Rear Underbody Cover For Front Wheel Drive (FWD))

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Blind rivet bolt

2 - Underbody cover for fuel tank

3 - Hex nut

1.7 Nm

4 - Hex nut

2.3 Nm

5 - Sheet-metal screw

1.7 Nm

6 - Sheet-metal screw

1.7 Nm

7 - Underbody cover, left, rear

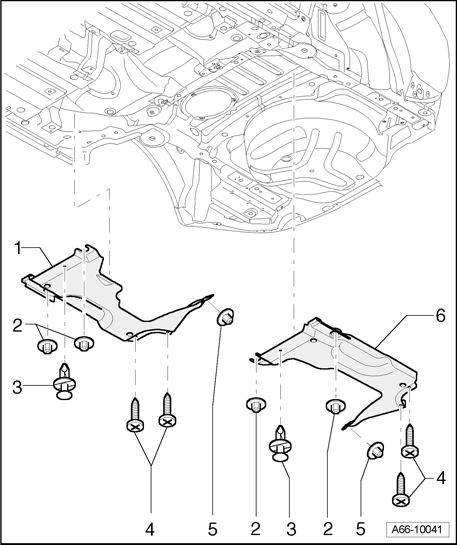

Rear underbody cover for All Wheel Drive (AWD)

Fig 3: Underbody Covers (Rear Underbody Cover For All Wheel Drive (AWD))

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Underbody cover for fuel tank

2 - Hex nut

2.3 Nm

3 - Expanding rivet

4 - Sheet-metal screw

5 - Spring nut

2.3 Nm

6 - Underbody cover, left, rear

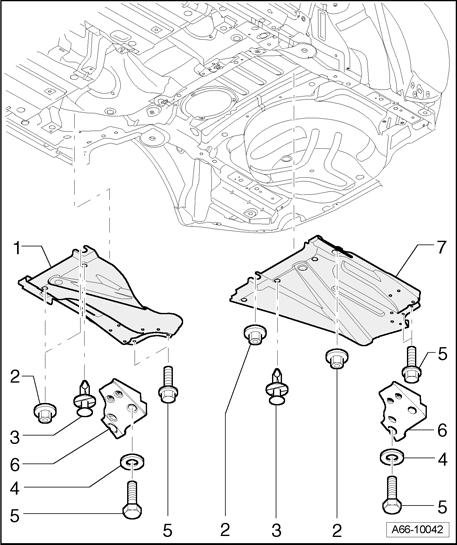

Underbody cover for rough terrain package

Fig 4: Underbody Covers (Underbody Cover For Rough Terrain Package)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Underbody cover for fuel tank

2 - Hex nut

2.3 Nm

3 - Expanding rivet

4 - Washer

5 - Hex bolt

5 Nm

6 - Stone impact protection plate

7 - Underbody cover, right, rear
