Roof trim molding (Sedan), removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

To remove roof trim molding, it is not necessary to remove the side window.

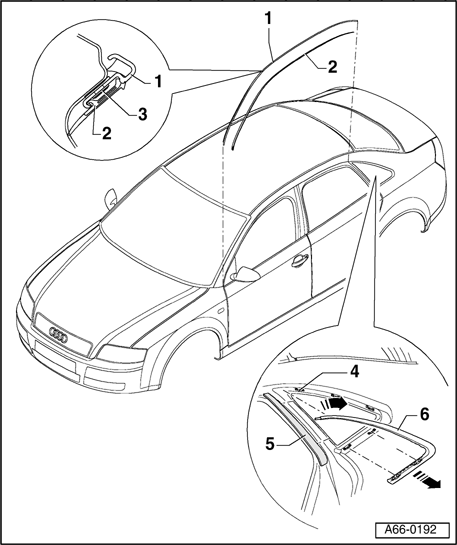

Fig 1: Roof Trim Molding (Sedan) Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Roof trim molding

B-pillar trim removed → B-pillar trim panel, removing and installing .
Door seals in area of roof trim molding pulled off.
Pry out cover strip - 2 - from roof trim molding.
Drill off rivet heads of pop rivets - 3 - , strike rivet shafts through and remove roof trim molding.

2 - Cover strip

To ease installation, coat edges with lubricant.
Press into roof trim molding from front toward rear.

3 - Pop rivet

4 - Retaining clip

5 - C- pillar trim

Pull off in direction of travel.

6 - Roof trim molding, side window

Pry off carefully using plastic wedge starting from bottom and pull off in - direction of arrow -.

CAUTION: Roof trim molding, side window may not be warped or bent, otherwise there is visual damage.
