Roof joint strip (Sedan), removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

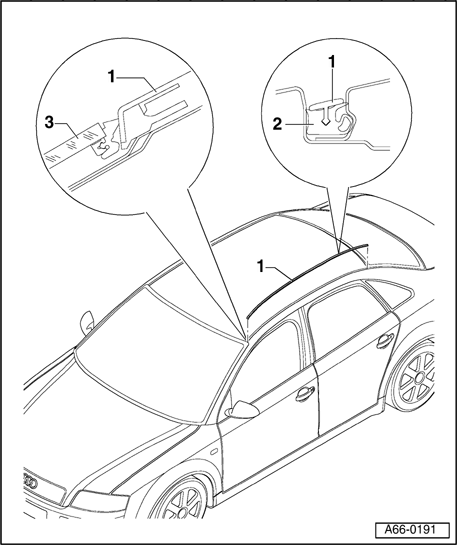

1 - Roof joint strip
- Removing:
- Carefully pry out of roof joint starting from rear.
- Installing:
- Install seal profile - 2 - onto roof joint strip - 1 -.
- Coat seal profile with lubricant (e.g. soap).
- Slide in roof joint strip under gap cover starting at windshield - 3 - and press into roof joint in sections up to half way.
- Also slide in roof joint strip under gap cover at rear window and press completely into roof joint.
2 - Seal profile
- Coat with lubricant before installing.
3 - Windshield
