Trim cover for sill panel, removing and installing
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

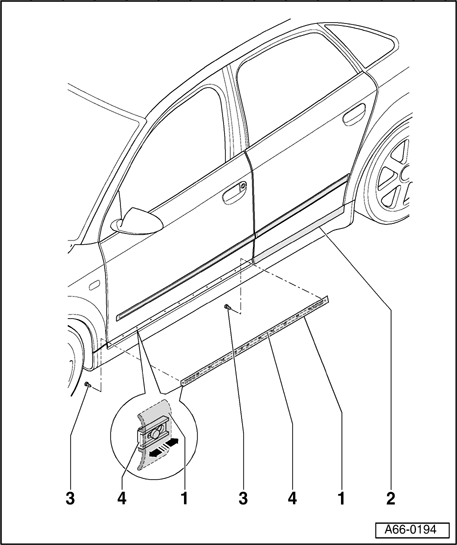

1 - Front trim cover
- To remove, remove bolt - 3 - , slide trim cover with clip - 4 - toward rear and out of locking mechanism.
- Remove trim cover sideways.
- To install, insert trim cover in door, slide into locking mechanism toward front and secure with bolt - 3 -.
2 - Rear trim cover
- Removal as for front trim cover.
3 - Bolt
- 1 Nm
4 - Clip
