Lettering on rear lid (Avant)
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Outer edges of rear lid and lines extending from lower rear lights are used as reference edges.
Installation:
- Warm vehicle and type designation to room temperature.
- Bonding surfaces must be dry and free from dust and grease.
- Clean outer panel with mineral spirits, treat with silicone remover and rub dry.
- Pull off backing paper and press on characters - 1 - , maintaining pressure for approx. 3 seconds.

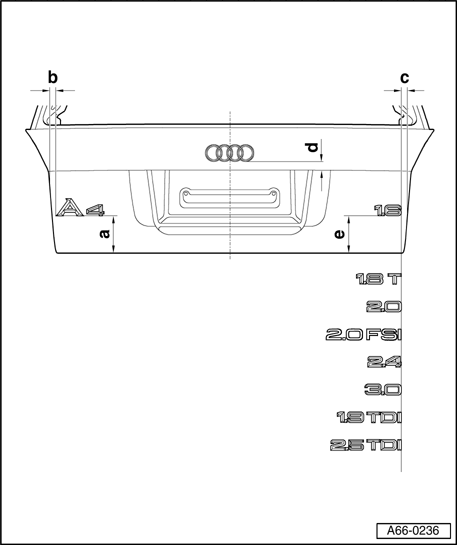

Dimensional data for Front-Wheel Drive (FWD) vehicles
- a = 95 mm
- b = 33 mm
- c = 38 mm
- d = 28 mm
- e = 95 mm

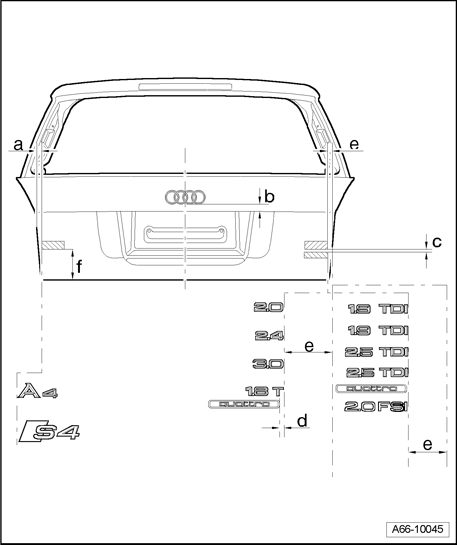

Dimensional data for All Wheel Drive (AWD) vehicles
- a = 33 mm
- b = 28 mm
- c = 4 mm
- d = 12.5 mm
- e = 38 mm
- f = 95 mm
