Lettering on rear lid (Avant)
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

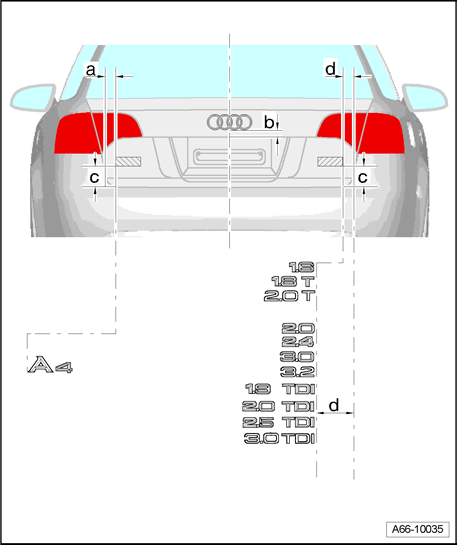

Dimensional data for Front-Wheel Drive (FWD) vehicles
- a = 50 mm
- b = 30 mm
- c = 65 mm
- d = 50 mm

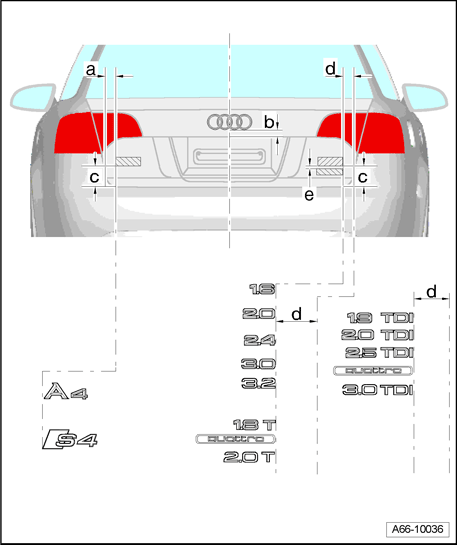

Dimensional data for All Wheel Drive (AWD) vehicles
- a = 50 mm
- b = 30 mm
- c = 65 mm
- d = 50 mm
- e = 4 mm
