Crossmember for bumper, removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Bumper cover removed.

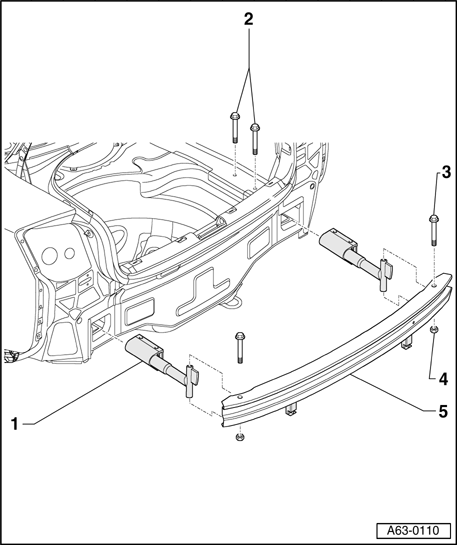

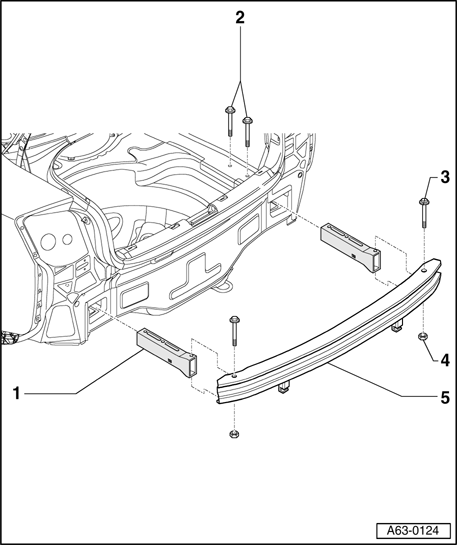

Fig 1: Crossmember For Bumper Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Shock absorber

2 - Bolt

10 Nm
4x

3 - Bolt

20 Nm
2x

4 - Nut

20 Nm
2x

5 - Cross member

USA version
