Crossmember for bumper (vehicles with trailer hitch), removing and installing: Notes

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Bumper cover removed.

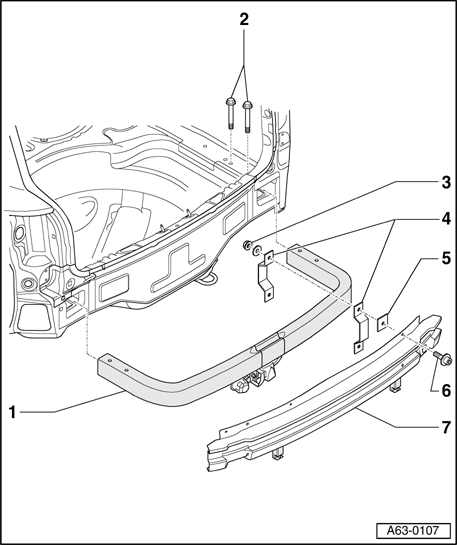

Fig 1: Crossmember For Bumper (Vehicles With Trailer Hitch) Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Trailer hitch carrier

2 - Bolt

60 Nm
4x

3 - Nut

23 Nm
2x

4 - Mounting clamps

5 - Spacer

6 - Bolt

23 Nm
2x

7 - Cross member
