Centering holes for side impact moldings: Notes

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Up to Vehicle Identification Number (VIN) 400 000

NOTE:

Centering holes for side impact molding must be drilled on a new bumper before painting.

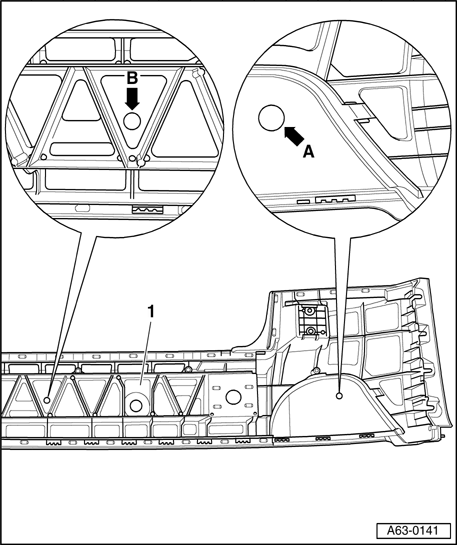

Fig 1: Centering Holes For Side Impact Moldings

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Rear bumper

Markings for centering holes are positioned on the inside of the cover - arrows - as shown.
Drill through cover at these locations (3x) using a drill bit 8.5 mm before painting.

Fig 2: Adhering Centering Pins On Side Impact Molding

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Adhering centering pins on side impact molding

NOTE:

Adhesive - 3 - and centering pin - 4 - (3x each) are in delivery casing of side impact molding - 1 -.

Remove protective foil from the double-sided adhesive - 3 - and adhere it onto centering pin - 4 -.
Remove second protective foil and position centering pin onto marking - arrow - on side impact molding.
Remove protective foils from double-sided adhesive strips - 2 - and press side impact molding - 1 - onto bumper.

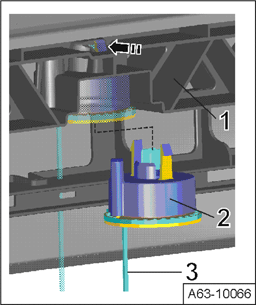

Fig 3: Installing Support Piece

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installing support piece

NOTE:

Support piece must be installed only with a new bumper cover.

To remove, press catch - arrow - to the side and pull support piece downward out of cover - 1 -.
Insert support piece - 2 - into cover as shown and let engage inside.
Disengaging cord must be removed only when the cover is installed completely.
