Cleaning water drain hoses

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For cleaning, it is recommended that you create your own assisting tool out of a speedometer inner cable, approx. 2300 mm (90.5 in.) long.

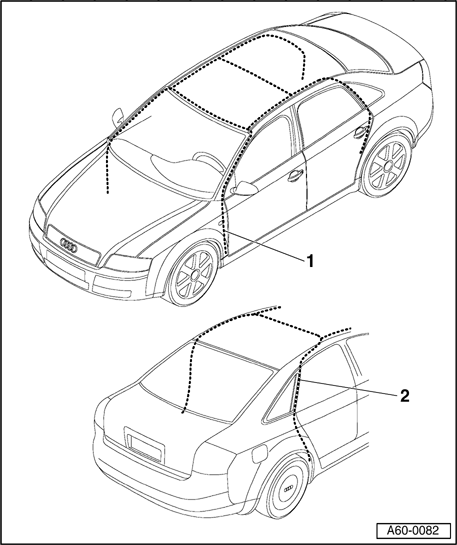

Fig 1: Identifying Front/Rear Water Drain Hose

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Front water drain hose

Front water drain hoses - 1 - are routed in A-pillar and end between door and A-pillar. Cleaning is performed at cut out for sunroof.

2 - Rear water drain hose

Rear water drain hoses - 2 - are routed in C-pillars and end at sides behind bumper cover. Cleaning is performed from lower hose end. To do this, bumper cover must be removed → Bumper, removing and installing .
