Gap dimensions for fuel filler flap
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.
- Dimension - D - = 3 mm
- Dimension - E - = 3 mm
- Dimension - F - = 3.5 mm
- Dimension - G - = 3 mm

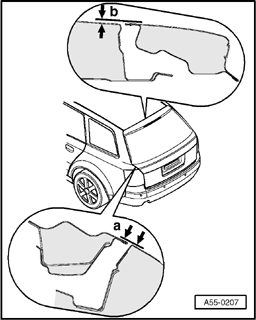

Fig 1: Positioning Rear Lid In Chassis Cut-Out Just So That Gap Measurement On Right Equals Gap Measurement On Left
- Position rear lid in chassis cut-out just so that the gap measurement on the right equals the gap measurement on the left.
- Check whether chassis surface below rear window stands flush with chassis surface of lower side panel - arrows a -.
- Check whether rear lid is flush with roof (and projects slightly upward).
- Dimension - b - = 0 to 0.5 mm
