Vehicles with 4-cylinder engines, assembly overview
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
There is no provision for servicing the power steering pump. If there are customer complaints, the cause must be determined using a pressure and leak test. If a malfunction is present, the power steering pump must be replaced.
NOTE:
- If the fluid level in the reservoir is low, the steering system must be inspected for leaks.
- If there are leaks in the area of the line connections, the lines/connections must first be inspected for leaks, tightened as necessary and wiped dry.
- Pumps from service parts inventory do not contain fluid. They must be filled with hydraulic fluid before installation and turned by hand, otherwise pump noise or damage can result in operation.

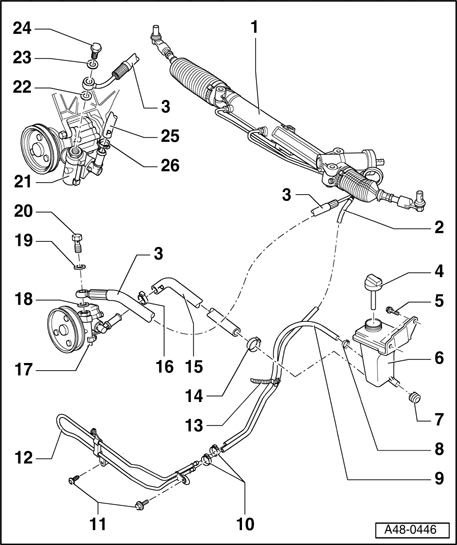

1 - Power-assist steering gear
2 - Return hose
3 - Extension hose
4 - Cap with dip stick
- Check fluid level → Power steering fluid level, checking
5 - Hex head bolt, 5 Nm
6 - Reservoir
- Refilling with hydraulic oil
7 - Rubber bushing
8 - Clamp
- Tension using V.A.G 1275
- Always replace
9 - Return hose
- Between reservoir and cooling line
10 - Clamp
- Tension using V.A.G 1275
- Always replace
11 - Hex head bolt, 10 Nm
12 - Cooling line
13 - Cable tie
14 - Clamp
- Tension using V.A.G 1275
- Always replace
15 - Intake hose
- Installed location → Intake hose
16 - Clamp
- Tension using V.A.G 1275
- Always replace
17 - Power steering pump
- Not for US market
18 - Sealing ring
- Always replace
19 - Sealing ring
- Always replace
20 - Banjo bolt, 50 Nm
21 - Power steering pump
- For 4-cylinder engines
- Fill with oil before installing → Note → Power steering pump, reservoir and hydraulic lines, assembly overview
22 - Sealing ring
- Always replace
23 - Sealing ring
- Always replace
24 - Banjo bolt, 50 Nm
25 - Intake hose
- Installed location → Intake hose
26 - Clamp
- Tension using V.A.G 1275
- Always replace
