6-cylinder gasoline engine, assembly overview
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

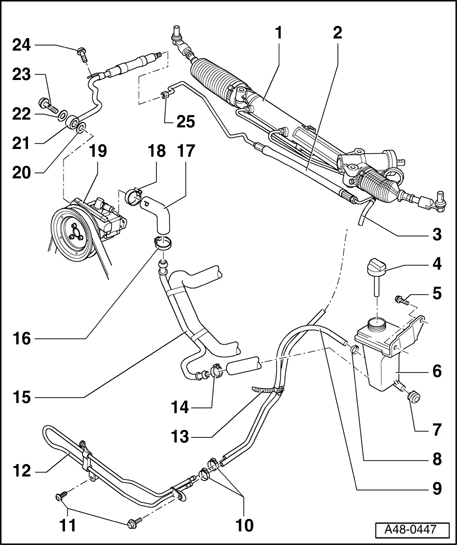

1 - Power-assist steering gear
2 - Extension hose
3 - Return hose
4 - Cap with dip stick
- Check fluid level → Power steering fluid level, checking
5 - Hex head bolt, 5 Nm
6 - Reservoir
- Refilling with hydraulic oil
7 - Rubber bushing
8 - Clamp
- Tension using V.A.G 1275
- Always replace
9 - Return hose
- Between reservoir and cooling line
10 - Clamp
- Tension using V.A.G 1275
- Always replace
11 - Hex head bolt, 10 Nm
12 - Cooling line
13 - Cable tie
14 - Clamp
- Tension using V.A.G 1275
- Always replace
15 - Intake hose
- Installed location → Intake hose
16 - Clamp
- Tension using V.A.G 1275
- Always replace
17 - Intake hose
- Installed location → Intake hose
18 - Clamp
- Tension using V.A.G 1275
- Always replace
19 - Power steering pump
- Fill with oil before installing → Note → Power steering pump, reservoir and hydraulic lines, assembly overview
20 - Sealing ring
- Always replace
21 - Extension hose
22 - Sealing ring
- Always replace
23 - Banjo bolt, 50 Nm
24 - Hex head bolt, 8 Nm
25 - Extension hose connection, 40 Nm
