Stub axle carrier - front wheel drive, servicing: Notes
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools, testers and auxiliary items required
- Thrust plate VW 402
- Punch VW 411
- Punch VW 412
- Sleeve VW 415 A
- Press piece VW 434
- Assembly tool VW 792
- Assembly tool 3301/4

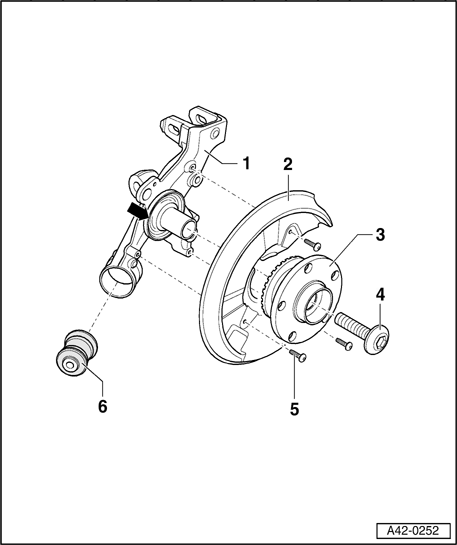

1 - Stub axle carrier
- Removing and installing → Stub axle carrier/wheel bearing housing and wheel bearing unit
- Front seal - arrow - must not grind against wheel bearing unit
- Do not remove front seal
2 - Shield plate
3 - Wheel bearing unit
- Does not need to be replaced
- If wheel bearing unit can be removed from stub axle carrier by hand, wheel bearing unit is OK and can be reinstalled.
- If it cannot be removed by hand, wheel bearing unit must be replaced.
- Replace only as a unit
4 - Collar bolt
- Always replace
5 - Torx bolt
- Torque specification → 46 - BRAKES - MECHANICAL COMPONENTS
6 - Rubber bushing
- Removing Rubber bushing, removing
- Installing Rubber bushing, installing
