Pressing off inner constant velocity joint

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

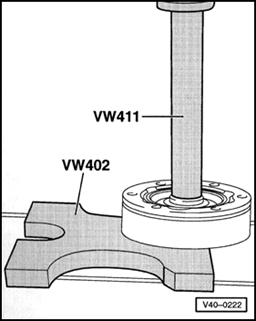

Fig 1: Pressing Off Inner Constant Velocity Joint
GW00019950Courtesy of VOLKSWAGEN UNITED STATES, INC.
NOTE:
  • Support ball hub with Thrust Plate VW402.
