Speed sensor wire routing on trapezoidal control arm
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

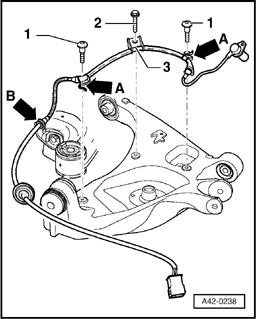

1 - Screw with cylindrical shoulder, 10 Nm
2 - Collar bolt, 10 Nm
3 - Cable guide
- To remove, remove collar bolt - 2 - and carefully slide cable guide off of screws - 1 - - arrow A -.
- To remove complete wiring, unclip at subframe - arrow B -.
