Front or rear diagonal braces, removing and installing

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Torque wrench V.A.G 1332

Front and rear diagonal braces are only installed in the convertible.

Removing

Remove front underbody trim before removing front diagonal braces. →
- 66 EXTERIOR EQUIPMENT
- 66 - EXTERIOR EQUIPMENT for BODY EXTERIOR - CABRIOLET

Fig 1: Identifying Left/Right Underbody Trim

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove rear underbody trim before removing rear diagonal braces - 1 -. →
- 66 EXTERIOR EQUIPMENT
- 66 - EXTERIOR EQUIPMENT for BODY EXTERIOR - CABRIOLET

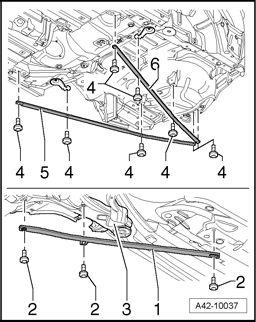

Fig 2: Removing/Installing Diagonal Brace & Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

If the same diagonal braces - 1 - , - 5 - or - 6 - are to be reinstalled, identify location of braces to body, e.g. with a felt-tip pen.

3 - Subframe

Put vehicle on its wheels.
Loosen bolts - 2 - and - 4 -.
Raise vehicle.
Remove bolts - 2 - or - 4 -.

Remove diagonal brace - 1 - , - 5 - or - 6 -.

Installing

Fig 3: Removing/Installing Diagonal Brace & Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Align diagonal brace - 1 - , - 5 - or - 6 - according to threaded holes or markings on body.
Insert new bolts - 2 - or - 4 - but do not tighten yet.
Place vehicle on wheels and bounce several times.
Tighten bolts - 2 - or - 4 -.

Torque specification: 65 Nm

Install front or rear underbody trim. →
- 66 EXTERIOR EQUIPMENT
- 66 - EXTERIOR EQUIPMENT for BODY EXTERIOR - CABRIOLET
