Wheel bearing housing with bolted wheel bearing, servicing: Notes

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

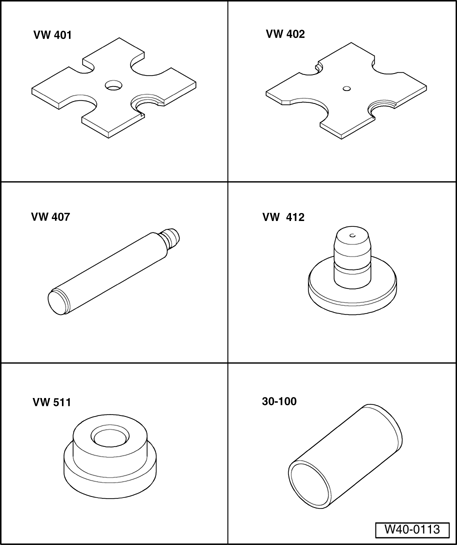

Fig 1: Identifying Special Tools - Wheel Bearing Housing With Bolted Wheel Bearing, Servicing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Thrust plate VW 401
Thrust plate VW 402
Punch VW 407
Punch VW 412

Thrust pad VW 511
Press tube 30 - 100

Fig 2: Sleeve VW 416 B

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Sleeve VW 416 B

Fig 3: Sleeve VW 519

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Sleeve VW 519
Torque wrench V.A.G 1331
Torque wrench V.A.G 1332
Separating tool Kukko 15-17

Assembly overview

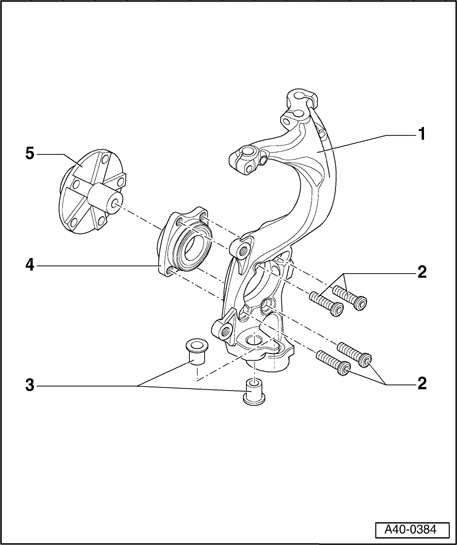

Fig 4: Wheel Bearing Housing With Bolted Wheel Bearing Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Wheel bearing housing

2 - Cap bolts

80 Nm plus an additional 90°(¹ /₄ turn)

3 - Sockets

4 - Ball bearing

Pressing out 82 mm dia. Pressing wheel hub out of 82 mm diameter wheel bearing housing
Pressing in 82 mm dia.→ Pressing wheel hub into 82 mm diameter wheel bearing
Bearing inner ring, pressing off → Press bearing inner race from hub
Removing and installing Removing

Installed location:
The larger diameter of the wheel bearing faces the hub

5 - Wheel hub

Pressing out Pressing wheel hub out of 82 mm diameter wheel bearing housing
Pulling off bearing inner race → Press bearing inner race from hub
Tie rod version
Wheel hub/brake disc contact surfaces and threaded holes are to be free of paint and dirt

Light weight wheel hub → Light weight wheel hub
