Tunnel crossmember, removing and installing

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools, testers and auxiliary items required

Fig 1: Identifying Engine/Transmission Jack V.A.G. 1383 A

GW00000183

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Engine/transmission jack V.A.G 1383 A
Torque wrench V.A.G 1331
Torque wrench V.A.G 1332

Removing

Remove sound insulation. →
- 50 BODY, FRONT
- 50 - BODY - FRONT for BODY EXTERIOR - CABRIOLET

Fig 2: Removing/Installing Combi-Bolts

GW00019827

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove combi-bolts - arrows -
Support transmission with engine and transmission jack V.A.G 1383 A and a wooden block.

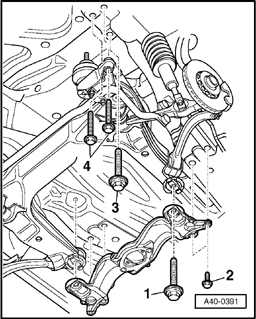

Fig 3: Removing Bolts & Tunnel Crossmember

GW00019828

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - 1 - and - 2 -.
Remove tunnel crossmember

Installing

Fig 4: Removing/Installing Bolts & Tunnel Crossmember

GW00019828

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Tighten combi-bolt - 1 - to 110 Nm + 90 °.

Use new washer and bolt.

Tighten combi-bolt - 2 - to 65 Nm.

Fig 5: Removing/Installing Combi-Bolts

GW00019827

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Tighten combi-bolts - arrows - to 23 Nm.
Install sound insulation. →
- 50 BODY, FRONT
- 50 - BODY - FRONT for BODY EXTERIOR - CABRIOLET
