Mounting bracket location

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Tensioning Suspension Strut With Spring Compressor Vertically In Spring Mounting Tool V.A.G 1752/2

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Tension suspension strut with spring compressor vertically in spring mounting tool V.A.G 1752/2.

Fig 2: Locating Lower Locking Lever And Turn Upper Suspension Strut Until Spring Mounting Tool V.A.G 1752/2 scale is at 7°

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Loosen lower locking lever and turn upper suspension strut until spring mounting tool V.A.G 1752/2 scale is at 7°.
Ensure ends of spring rest against spring seat and spring support stops.
Lock locking lever.

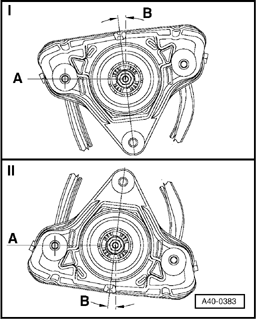

Fig 3: Identifying Strut/Control Arm Direction Of Travel

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Seen in direction of travel

I = left

II = right

A - strut/control arm bolt axis

Adjust angle B.

B = 7°

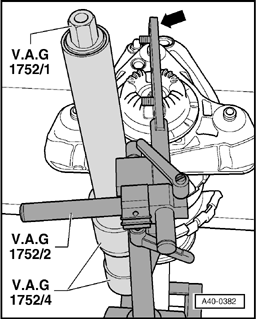

Fig 4: Tensioning Suspension Strut With Spring Compressor Vertically In Spring Mounting Tool V.A.G 1752/2

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Spring mounting tool V.A.G 1752/2 arm - arrow - must be aligned with center of mounting bracket.
Release tension on spring tensioner 1752/1 and remove.
Check adjustment, repeat procedure if necessary.

Permissible deviation: ± 2°.
