Lower suspension strut installation location
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

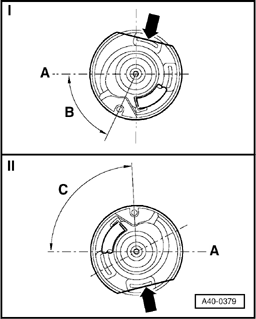

A - strut/control arm bolt axis
I = left, B = 65° ± 2°
II = right, C = 87° ± 2°
- Drive suspension strut downward using plastic hammer according to self-provided marking.
With a new damper, transfer marking from old damper.
Note different installation locations on left and right sides.
Suspension strut trimming - arrow - must result in clearance to body.
