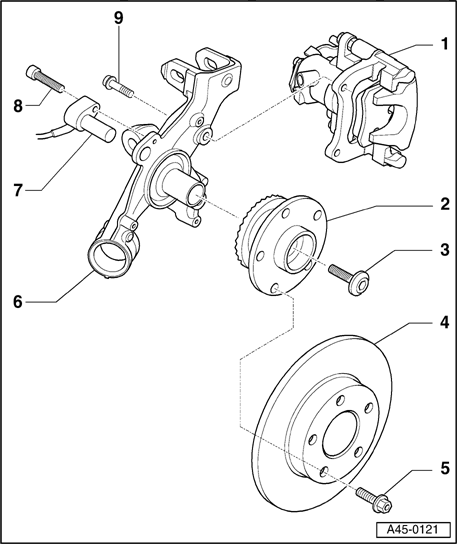

ABS system components on rear axle (FWD vehicles), removing and installing
WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Rear brake caliper
- Removing and installing → Brake calipers, servicing
2 - Wheel hub with rotor
- Removing and installing → 42 - REAR SUSPENSION
- Checking rotor
3 - Collar bolt
Vehicle must be standing on the ground when tightening
- Always replace
- Tightening torque → 42 - REAR SUSPENSION
4 - Brake disc
- Always replace both sides
- Remove brake caliper prior to removing
- Allocation → Brakes
- Thickness → Brakes
5 - Wheel bolt
Vehicle must be standing on the ground when tightening
- Installing wheels → 44 - WHEELS, TIRES, VEHICLE ALIGNMENT
6 - Wheel bearing housing
- Removing and installing → 42 - REAR SUSPENSION
7 - Speed sensor
- Left and right identical
- Removing and installing → Speed sensor on rear axle, removing and installing
- Before inserting into wheel bearing housing, lubricate circumference with grease G 000 650
- Press into wheel bearing housing onto stop
- Release speed sensor connector and disconnect. Unclip speed sensor wiring.
8 - Hex socket head bolt
- Tightening torques: 10 Nm
9 - Ribbed bolt, 75 Nm
- Always replace
