Rear final drive (Audi A4 and Cabriolet, Audi A6), overview

WARNING: This page does not describe the selected car, but rather 17 other vehicles, including the 2009 Audi S4, 2009 Audi A4, 2008 Audi S4, 2008 Audi RS 4, and 2008 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

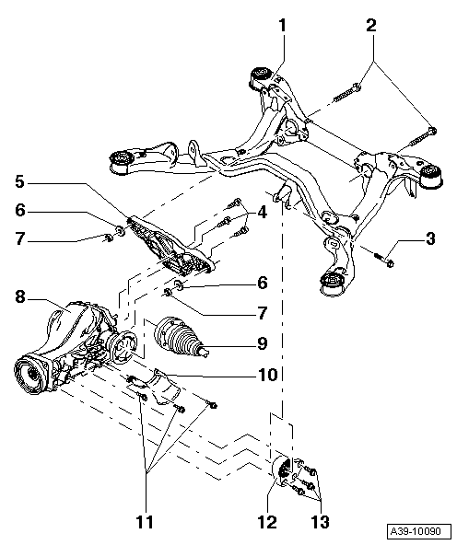

Fig 1: Rear Final Drive (Audi A4 And Cabriolet, Audi A6), Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Subframe

Removing and installing → 42 - REAR SUSPENSION

2 - Hex bolt

3 - Hex bolt, 40 Nm

For transmission support on subframe
If present, replace nut

4 - Hex socket head bolt, 40 Nm

5 - Rear cross member

6 - Washer

7 - Nut

Self-locking
Replace
Tightening torque → 42 - REAR SUSPENSION

8 - Rear final drive

Removing and installing → Rear final drive (Audi A4 and Cabriolet, Audi A6), removing and installing

9 - Drive axle

Removing and installing → 42 - REAR SUSPENSION

10 - Heat shield

11 - Hex socket head bolt, 25 Nm

12 - Transmission support

13 - Hex socket head bolt, 40 Nm
