Check input shaft cylinder running and sealing surfaces for wear

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2009 Audi A4, 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

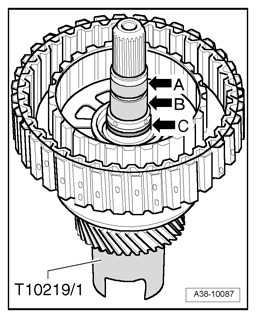

Fig 1: Checking Input Shaft Cylinder Running And Sealing Surfaces For Wear

GW00019619

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Check input shaft running and sealing surfaces - arrow A - for wear.

NOTE:

Shaft seal in input shaft cover seals at this sealing surface - arrow A -.
Light scoring from shaft seal is normal.

Check ball bearing running surface - arrow B - in input shaft cover for wear.
Check shaft seal - arrow C - for damage.

If seal - arrow C - is damaged or shaft running surfaces - arrow B - or - arrow A - show deep scoring or grooves, entire input shaft must be replaced.
