Camshaft Adjustment Valve 1 N205 , removing and installing

WARNING: This page is about a different car, the 2009 Audi A4, 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

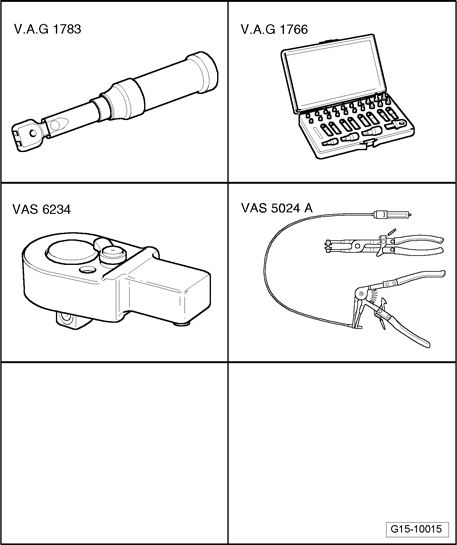

Fig 1: Identifying Special Tools - Camshaft Adjustment Valve 1 N205 , Removing And Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Torque wrench V.A.G 1783
Torx bit assortment V.A.G 1766
Ratchet 1/4" VAS 6234
Spring-type clip pliers VAS 5024 A

Removing

NOTE:

Always replace gaskets and seals.

Fig 2: Removing Engine Cover

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove engine cover - arrows -.

Fig 3: Separating Electrical Connector

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Separate electrical connector - 1 -.
Remove wiring harness bracket - arrow -.

NOTE:

Do not pull out Camshaft Adjustment Valve 1 N205 at connector.

Fig 4: Removing Bolts And Camshaft Adjustment Valve 1 N205 From Housing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove bolts - arrows - and remove Camshaft Adjustment Valve 1 N205 from housing.

Installing

NOTE:

Camshaft Adjustment Valve 1 N205 as well as housing must be free of dirt and contamination.
Remove new Camshaft Adjustment Valve 1 N205 from packaging only prior to installation.

CAUTION:

The Camshaft Adjustment Valve 1 N205 must not experience any hits or impacts.

Coat sealing ring with engine oil.
Carefully insert Camshaft Adjustment Valve 1 N205 into housing and press it in perpendicular to valve axle by hand as far as stop.
Install bolts and tighten to 4 Nm with Torque Wrench V.A.G 1783 , Ratchet Adapter 1/4 VAS 6234 , TORX-Bit T20 and Bithalter from TORX bit set V.A.G 1766.

The rest of assembly is basically a reverse of disassembling sequence.

Torque specifications

Component	Nm
Camshaft Adjustment Valve 1 N205	4
