Crankshaft seal - ribbed belt side, replacing: Notes

WARNING: This page is about a different car, the 2009 Audi A4, 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

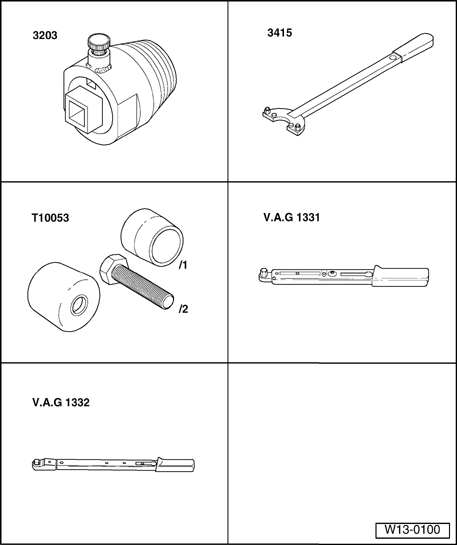

Fig 1: Identifying Special Tools - Crankshaft Seal - Ribbed Belt Side, Replacing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required

Seal Remover 3203
Counter-holder tool 3415
Assembly tool T10053
Torque wrench V.A.G 1331

Torque wrench V.A.G 1332

Removing

Remove ribbed belt → Ribbed belt, removing and installing .
Toothed belt, removing → Toothed belt drive, overview .

Fig 2: Securing Toothed Belt Gear Using Counter Support 3415

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Loosen toothed belt crankshaft sprocket by holding sprocket with Counter Support 3415.

Fig 3: Identifying Center Bolt, Crankshaft Toothed Belt Gear & Diamond Disc

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Remove toothed belt crankshaft sprocket center bolt - 1 - and remove sprocket - 2 - and diamond disc - 3 -.

Fig 4: Identifying Center Bolt & Crankshaft

Courtesy of VOLKSWAGEN UNITED STATES, INC.

To guide seal puller, thread center bolt into crankshaft by hand until stop.
Remove inner part of Seal Remover 3203 nine rotations (approx. 20 mm) from outer part and secure with knurled-head screw.

Fig 5: Identifying Special Tool - Seal Puller 3203

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Grease threaded head of Seal Remover 3203 , position and install into oil seal as far as possible with forceful pressure.
Loosen knurled screw and turn inner portion against crankshaft until oil seal is pulled out.
Secure seal remover in a vise at the flat spots. Remove seal using pliers
