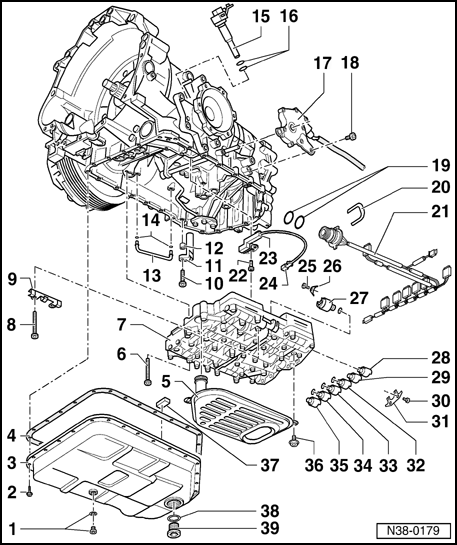

Removed parts for transmission with hydraulic control E18/2, overview

1 - Drain plug - 40 Nm

• With seal
• Always replace
• 5 mm socket-head bolt
• Remove to drain ATF

2 - Bolt - 10 Nm

• Tighten bolts for oil pan in several stages in diagonal sequence

3 - Oil pan

• Removing and installing → Oil pan, removing and installing

4 - Gasket

• Always replace

5 - Oil strainer

• Removing and installing → Oil strainer, removing and installing

6 - Bolt - 8 Nm

• For mounting valve body: 16 bolts M6 x 60
• Observe tightening sequence → Figure

7 - Valve body

• Removing and installing → Valve body, removing and installing

8 - Bolt - 8 Nm

9 - Bracket

• For wiring harness
• Hook in wiring harness
• Mounted with valve body bolts

10 - Bolt - 6 Nm

11 - Transmission Vehicle Speed Sensor (VSS) G38 (also designated as Sender for transmission output RPM G195 )

• Removing and installing → Transmission Vehicle Speed Sensor (VSS) G38 , removing and installing

12 - Spacer sleeve

• Height: 8 mm

13 - Inner oil line

• Always replace
• Removing and installing → Oil line inside transmission, removing and installing

14 - O-ring

• Always replace

15 - Speedometer Vehicle Speed Sensor (VSS) G22

• Removing and installing → Speedometer Vehicle Speed Sensor (VSS) G22 , removing and installing

16 - O-ring

• Always replace
• Coat with gear oil and insert

17 - Multi-Function Transmission Range (TR) Switch F125

• Removing and installing → Multi-Function Transmission Range (TR) Switch F125 , removing and installing
• Replacing shift rod sealing ring → Shift rod seal, replacing

18 - Bolt - 8 Nm

19 - O-ring

• Always replace
• Coat with ATF and insert

20 - Locking clamp

• Always replace

21 - Wiring harness in transmission

• Always replace → Wiring harness inside transmission, removing and installing
• Transmission Fluid Temperature Sensor G93 is integrated into the wiring harness
• Remove and install valve body to replace → Valve body, removing and installing
• Unhook from bracket for wiring harness, item 10

• Installation position wiring harness connector: Flat part of rear collar points toward oil pan, the tabs at collar are horizontal

22 - Bolt - 9 Nm

23 - Sensor for transmission RPM G182

• Removing and installing → Sensor for transmission RPM G182 , removing and installing

24 - Connector

• Is connected at wiring harness in transmission
• Must be disconnected before removing the valve body

25 - Bolt - 6 Nm

26 - Bracket

• For solenoid valve

27 - Pressure Control Valve 1 for Auto. Transmission N215

• With O-ring
• Remove and install valve body to replace → Valve body, removing and installing

28 - Solenoid valve 3 N90

• Without O-ring
• Remove and install oil pan to replace → Oil pan, removing and installing

29 - Solenoid valve 2 N89

• Without O-ring
• Remove and install oil pan to replace → Oil pan, removing and installing

30 - Bolt - 6 Nm

31 - Bracket

• For solenoid valves

32 - Pressure Control Valve 3 for Auto. Transmission N217

• With O-ring
• Remove and install oil pan to replace → Oil pan, removing and installing

33 - Pressure Control Valve 4 for Auto. Transmission N218

• With O-ring
• Remove and install oil pan to replace → Oil pan, removing and installing

34 - Pressure Control Valve 2 for Auto. Transmission N216

• With O-ring
• Remove and install oil pan to replace → Oil pan, removing and installing

35 - Solenoid valve 1 N88

• Without O-ring
• Remove and install oil pan to replace → Oil pan, removing and installing  and unbolt guide plate for park locking mechanism
• When installing, do not tighten bolts for guide plate (23 Nm) in selector lever position "P".

36 - Bolt - 6 Nm

37 - Magnet

• 4 pieces in the oil pan recesses
• Clean after every removal of oil pan
• Ensure full surface contact in oil pan

38 - O-ring

• Always replace

39 - ATF check plug - 80 Nm

• 17 mm socket-head bolt
