Hollow shaft, disassembling and assembling: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2007 Audi S4, 2007 Audi RS 4, and 2006 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- The removal and installation of 1st, 2nd and reverse gear selector gears is described in Transmission, disassembling and assembling → Assembly sequence .

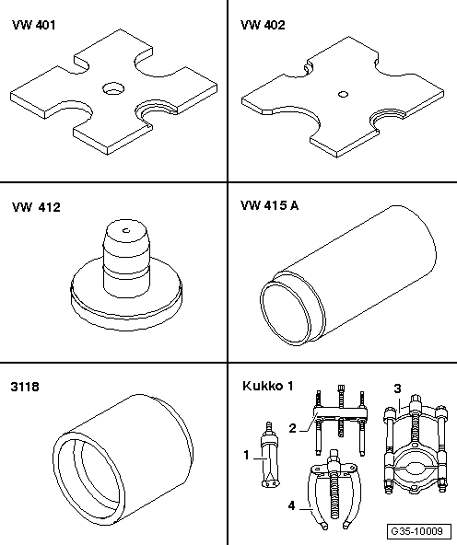

Special tools, testers and auxiliary items required
- Pressure plate VW 401
- Pressure plate VW 402
- Punch VW 412
- Tube VW 415 A
- Thrust piece 3118
- - 3 - Separating tool Kukko 17/2
- Feeler gauge
