Hollow shaft roller bearing, pressing on

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2007 Audi S4, 2007 Audi RS 4, and 2006 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

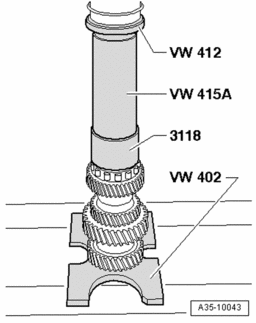

Fig 1: Hollow Shaft Roller Bearing, Pressing On

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Thrust piece 3118 shoulder faces toward roller bearing.

If you have replaced the transmission housing, gear set, hollow shaft or gears on hollow shaft, you must now redetermine the shim " S ₆ " for positioning 2nd gear selector gear → Shim " S 6 " for positioning 2nd gear selector gear, redetermining .
