Pinion shaft and hollow shaft, disassembling and assembling: Notes
WARNING: This page is about a different car, the 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Removing and installing gear wheels for 3rd to 6th gear and the reverse selector gear is described in chapter on disassembling and assembling transmission → Disassembling and assembling sequence .

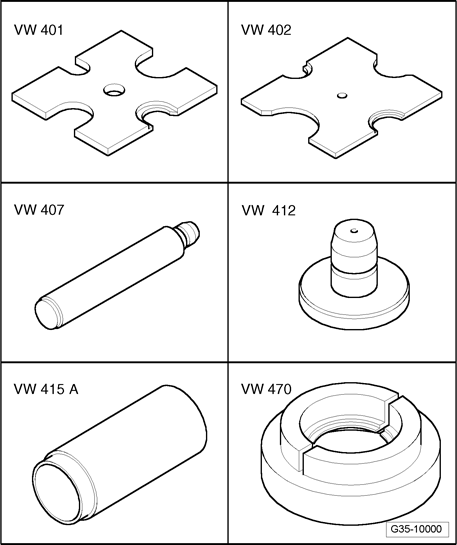

Fig 1: Identifying Special Tools - Pinion Shaft And Hollow Shaft, Disassembling And Assembling (1 Of 3)
Special tools, testers and auxiliary items required
- Thrust plate VW 401
- Thrust plate VW 402
- Punch VW 407
- Thrust disc VW 412
- Tube VW 415 A
- Thrust ring VW 470

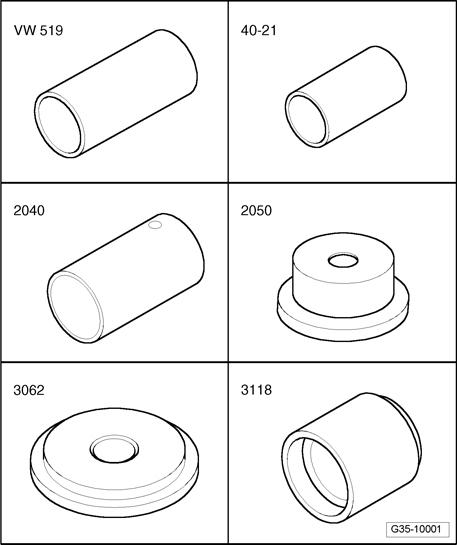

Fig 2: Identifying Special Tools - Pinion Shaft And Hollow Shaft, Disassembling And Assembling (2 Of 3)
Special tools, testers and auxiliary items required
- Sleeve VW 519
- Press tool 40 - 21
- Tube 2040
- Thrust piece 2050
- Thrust pad 3062
- Press tool 3118
Fig 3: Identifying Special Tools - Pinion Shaft And Hollow Shaft, Disassembling And Assembling (3 Of 3)
Special tools, testers and auxiliary items required
- Sleeve 3144
- Wheel bearing assembly set 3253
- Tube for wheel bearing 3345
- Hot air blower V.A.G 1416
- - 1 - Internal puller Kukko 21/8
- - 3 - Splitter Kukko 17/2
- - 4 - Counter-support Kukko 22/2
- Feeler gauge
