Pressing off 1st and 2nd gear synchronizing hub

WARNING: This page is about a different car, the 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

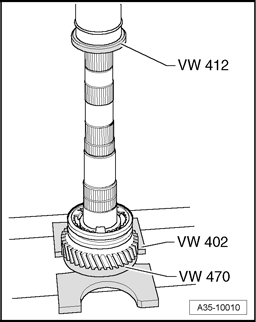

Fig 1: Pressing Off 1st And 2nd Gear Synchronizing Hub
GW00019140Courtesy of VOLKSWAGEN UNITED STATES, INC.
