Checking axial play of selector gears

WARNING: This page is about a different car, the 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

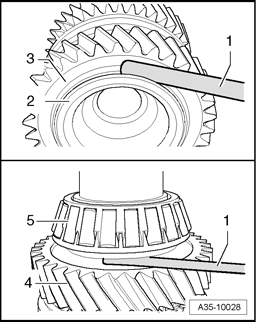

Fig 1: Checking Axial Play Of Selector Gears

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Check axial play of selector gears between hollow shaft - 2 - and 1st speed selector gear - 3 - and also between 2nd speed selector gear - 4 - and tapered roller bearing inner race - 5 - using feeler gauge - 1 -.

The play must be 0.20 to 0.50 mm.
