Ball bearing for input shaft, transmission cover, bearing housing and selector shaft, removing and installing

WARNING: This page is about a different car, the 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

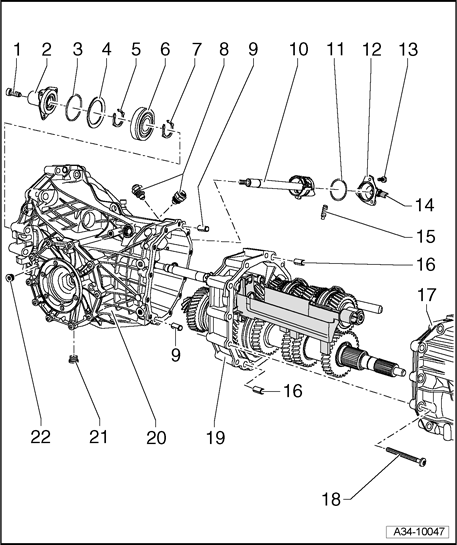

Fig 1: Ball Bearing For Input Shaft, Transmission Cover, Bearing Housing And Selector Shaft, Removing And Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - TORX bolt, 35 Nm

3 x
Apply locking fluid AMV 185 101 A1 when installing

2 - Guide sleeve

With seal
Removing and installing → Disassembling and assembling sequence

3 - O-ring

Always replace

4 - Dished spring

5 - Circlip

Note thickness
Re-determining thickness

6 - Ball bearing

Removing and installing → Disassembling and assembling sequence

7 - Circlip

Note thickness
Re-determining thickness

8 - Locking bolt, 45 Nm

2 x
Apply locking fluid AMV185101A1 when installing

9 - Dowel sleeve

2 x
Insert in transmission housing
Remove and install with drift 3121

10 - Selector shaft with selector cylinder

Removing and installing → Disassembling and assembling sequence

11 - O-ring

For selector shaft cover
Always replace
Lubricate with gear oil

12 - Cover for selector shaft

With back-up light switch F4
Removing and installing → Disassembling and assembling sequence

13 - Bolt -24 Nm-

3 x
Apply locking fluid AMV185101A1 when installing

14 - Back-up light switch F4, 20 Nm

15 - Pin

For selector shaft stop
Insert in transmission housing
Installation position: groove on threaded pin points toward selector shaft cover

16 - Dowel sleeve

2 x
Insert in bearing housing
Remove and install with drift 3121

17 - Transmission cover

Servicing → Transmission cover, servicing

18 - Bolt, 35 Nm plus an additional 90°¹ /₄ turn

12 x

19 - Bearing housing

Removing and installing 3rd to 6th gear → 3rd to 6th gear, removing and installing
Removing and installing input shaft, pinion shaft/hollow shaft, reverse gear wheel and reverse selector gear → Input shaft, pinion shaft/hollow shaft, reverse gear wheel and reverse selector gear, removing and installing
Servicing → Bearing housing, servicing

20 - Transmission housing

With differential and flange shafts
Removing and installing differential → Differential, removing and installing
Servicing transmission housing → Transmission housing, servicing

21 - Oil drain plug, 45 Nm

22 - Oil filler plug, 45 Nm
