Clutch Pedal Starter Interlock Switch F194, removing and installing

WARNING: This page is about a different car, the 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

To ensure a secure fit, the clutch pedal starter interlock switch F194 must not be installed more than once.

Removing

Remove storage compartment on drivers side →
- 68 - INTERIOR EQUIPMENT
- 68 - INTERIOR EQUIPMENT for Cabriolet
.

Fig 1: Installing and Adjusting Clutch Pedal Starter Interlock Switch F194

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Disconnect electrical connector - 3 - on clutch pedal switch.
Press clutch pedal - 1 - all the way down and hold it in this position.
At the same time, release clutch pedal starter interlock switch F194 - 2 - by turning it 45° in the direction indicated - arrow - and pull it out of the guide.

Installing

Fig 2: Pulling Out Switch Plunger & Identifying Retainer Tabs On Switch

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Pull out operating rod - arrow - all the way before installing clutch pedal switch.

Fig 3: Pressing Clutch Pedal All The Way Down And Pushing Operating Rod Against Clutch Pedal

Courtesy of VOLKSWAGEN UNITED STATES, INC.

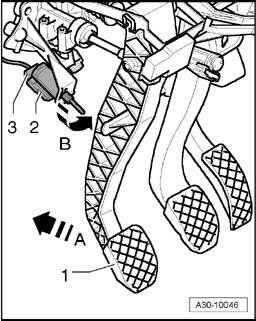

When installing clutch pedal starter interlock switch F194, press clutch pedal - 1 - all the way down - arrow A -. Hold clutch pedal in this position.
Guide clutch pedal starter interlock switch F194 - 2 - through opening in retainer, and at the same time push operating rod against clutch pedal and secure switch by turning it 45° in the direction indicated - arrow B -.
Connect electrical connector - 3 - on clutch pedal starter interlock switch F194.
Install storage compartment on drivers side →
- 68 - INTERIOR EQUIPMENT
- 68 - INTERIOR EQUIPMENT for Cabriolet
.
