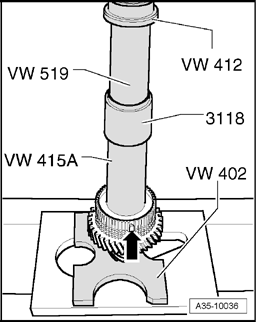

Fig 1: Pressing On 1st And 2nd Gear Synchronizing Hub
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Installation position:
High inside collar faces 2nd gear.
The lugs of 1st gear synchro-ring and recesses on synchronizing hub must align - arrow
- when pressing on.
