Pressing off tapered roller bearing inner race with 2nd speed selector gear
WARNING: This page is about a different car, the 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

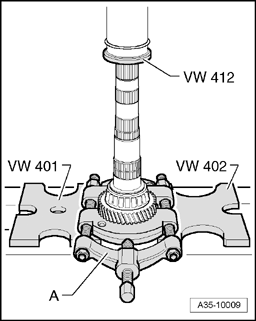

A - Splitter 22 to 115 mm, e.g. Kukko 17/2
CAUTION:
When pressing off, make sure that only the gear teeth of the selector gear and not the gear shift splines contact the splitter - A
-. Otherwise the gear shift splines will be damaged.
- Remove circlip for tapered roller bearing inner race.
