Ball bearing for input shaft, transmission cover, bearing housing and selector shaft, removing and installing, assembly overview
WARNING: This page is about a different car, the 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
Sequence for disassembling and assembling → Disassembling and assembling sequence

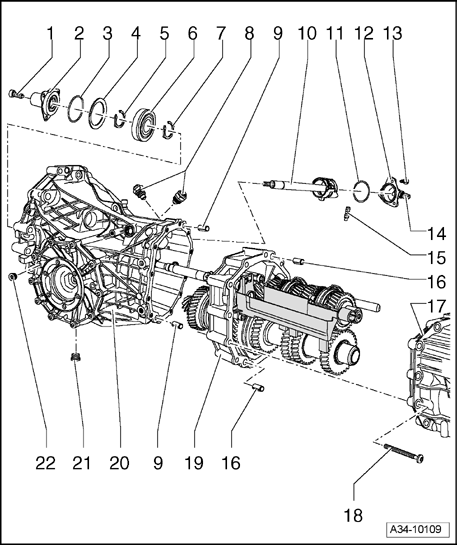

Fig 1: Ball Bearing For Input Shaft, Transmission Cover, Bearing Housing And Selector Shaft, Removing And Installing, Assembly Overview
1 - Torx bolt, 35Nm
- 3 (Qty.)
- Apply locking fluid AMV 185 101 A1 when installing
2 - Guide sleeve
- With seal
- Removing and installing → Disassembling and assembling sequence
3 - O-ring
- Always replace
4 - Dished spring
5 - Circlip
- Note thickness
- Re-determining thickness
6 - Ball bearing
- Removing and installing → Disassembling and assembling sequence
7 - Circlip
- Note thickness
- Re-determining thickness
8 - Locking bolt, 45 Nm
- 2 (Qty.)
- Apply locking fluid AMV185101A1 when installing
9 - Dowel sleeve
- 2 (Qty.)
- Insert in transmission housing
- Remove and install with drift 3121
10 - Selector shaft with selector cylinder
- Removing and installing → Disassembling and assembling sequence
11 - O-ring
- For selector shaft cover
- Always replace
- Lubricate with gear oil
12 - Cover for selector shaft
- With Back-up light switch F4
- Removing and installing → Disassembling and assembling sequence
13 - Bolt, 24 Nm
- 3 (Qty.)
- Apply locking fluid AMV185101A1 when installing
14 - Back-up light switch F4 -20 Nm-
15 - Pin
- For selector shaft stop
- Insert in transmission housing
- Installation position: groove on threaded pin points toward selector shaft cover
16 - Dowel sleeve
- 2 (Qty.)
- Insert in bearing housing
- Remove and install with drift 3121
17 - Transmission cover
- Servicing → Transmission cover, servicing
18 - Bolt, 35 Nm plus an additional 90° 1 /4 turn
- 12 (Qty.)
19 - Bearing housing
- Removing and installing 3rd to 6th gear → 3rd to 6th gear assembly overview, removing and installing
- Removing and installing input shaft, output shaft with selector gear for 1st and 2nd gear, reverse gear wheel and reverse selector gear → Input shaft, output shaft, reverse gear wheel and reverse selector gear, assembly overview, removing and installing
- Servicing → Bearing housing, servicing
20 - Transmission housing
- With differential and flange shafts
- Removing and installing differential → Differential, removing and installing
- Servicing transmission housing → Transmission housing, servicing
21 - Oil drain plug, 45 Nm
22 - Oil filler plug, 45 Nm
