Pedal cluster - RHD vehicles, assembly overview

WARNING: This page is about a different car, the 2008 Audi A4, 2007 Audi A4, 2006 Audi A4, and 2005 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

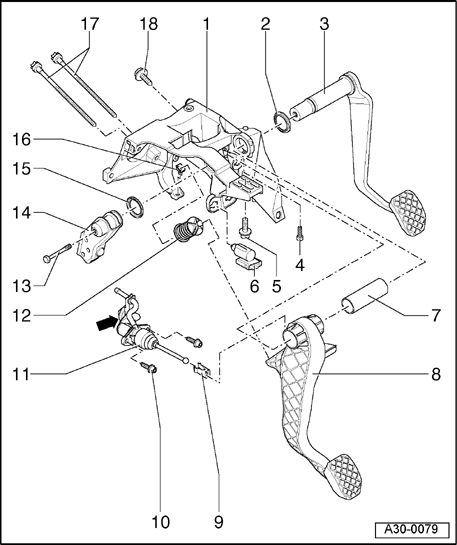

Fig 1: Pedal Cluster - RHD Vehicles, Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Mounting bracket

Removing and installing → Master cylinder, removing and installing

2 - Washer

3 - Brake pedal

Maintenance-free bearing, do not grease

4 - Hex socket head bolt -5 Nm-

For securing the bearing sleeve

5 - Hex socket head bolt -25 Nm-

6 - Clutch pedal switch F36

Only install one time
Replace

7 - Bearing sleeve

Check for freedom of movement in clutch pedal

8 - Clutch pedal

Removing and installing → Master cylinder, removing and installing

9 - Retaining clip

10 - Hex socket head bolt, 20 Nm

11 - Master cylinder

Removing and installing → Master cylinder, removing and installing
Gasket - arrow - must not be removed

12 - Over-center spring

Removing and installing → Over-center spring, removing and installing

13 - Bolt -22 Nm-

Self-locking
Replace

14 - Lever

Pin only fits in one position

15 - Washer

16 - Mounting

For over-center spring

17 - Torx bolt, 25Nm

For securing brake master cylinder/brake servo to mounting bracket

18 - Bolt, 25 Nm
