Position of shims

WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

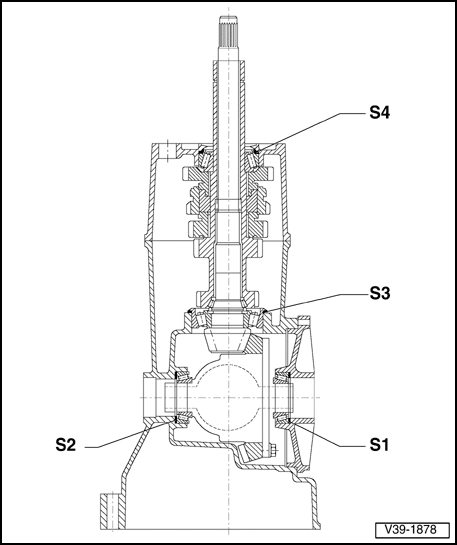

Fig 1: Location Of Shims

Courtesy of VOLKSWAGEN UNITED STATES, INC.

S1 - Adjustment shim for ring gear in transmission housing cover

S2 - Adjustment shim for ring gear in transmission housing

S3 - Adjustment shim for drive pinion in transmission housing

S4 - Adjustment shim for drive pinion in bearing plate
