Removing circlip
WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of VOLKSWAGEN UNITED STATES, INC.

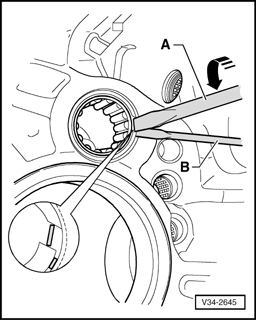

- Lift circlip out of the groove by turning one end of circlip with a screwdriver -A-.
- Secure this end with a screwdriver -B-.
- Lever circlip out further by repositioning screwdriver -A-.
