Crankshaft oil seal - pulley end, replacing: Notes

WARNING: This page is about a different car, the 2006 Audi A4, 2005 Audi A4, 2004 Audi A4, and 2003 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

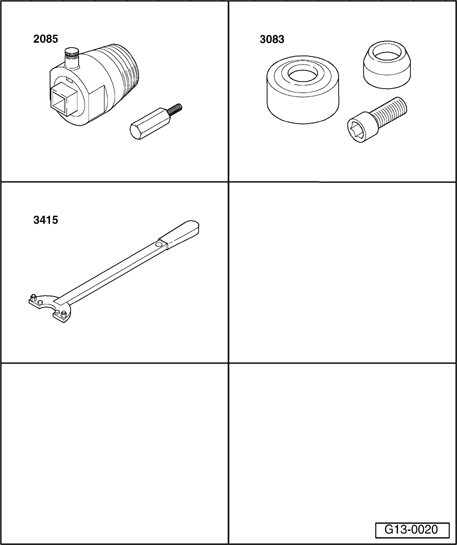

Fig 1: Identifying Special Tools - Crankshaft Oil Seal - Pulley End, Replacing
GW00017336Courtesy of VOLKSWAGEN UNITED STATES, INC.

Special tools, testers and auxiliary items required
