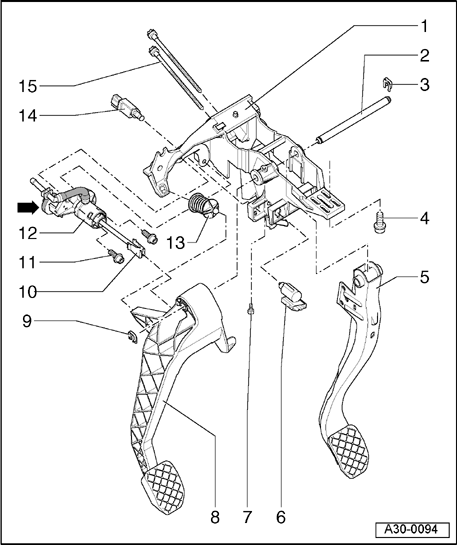

Pedal cluster, assembly overview
WARNING: This page is about a different car, the 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
1 - Mounting bracket
- Removing and installing. Refer to Slave cylinder, removing and installing
2 - Fulcrum pin for clutch and brake pedal
3 - Fastener
4 - Hex socket-head bolt - 25 Nm
5 - Brake pedal
- Mounting is maintenance-free, do not grease
6 - Clutch pedal switch
- Can only be installed one time
7 - Hex socket-head bolt - 5 Nm
- For securing pivot pins for clutch and brake pedal
8 - Clutch pedal
- Removing and installing. Refer to Slave cylinder, removing and installing
9 - Fastener
10 - Retainer
- Removing and installing. Refer to Hydraulic system, assembly overview
11 - Hex socket-head bolt - 20 Nm
12 - Master cylinder
- Removing and installing. Refer to Slave cylinder, removing and installing
- Seal -arrow- must not be removed
13 - Over-center spring
- Black end points toward clutch pedal
- Removing and installing. Refer to Over-center spring, removing and installing
- Allocation
Refer to Parts list
14 - Clutch Pedal Position (CPP) Switch -F194-
- Can only be installed one time
15 - Torx bolt - 25 Nm
- For securing brake master cylinder/brake servo to mounting bracket
