Camshaft, Measuring Axial Clearance
WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, and 2010 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Dial Gauge Holder VW 387
- Dial Gauge 0-3 mm VAS 6080
Procedure
-- Remove the camshafts. Refer to CAMSHAFTS .
-- Mark the assignment of the roller rocker lever for installation later.
-- Remove the roller rocker lever and place it on a clean surface.
-- Install the camshaft and the guide frame. Refer to Figure and tighten the old bolts to 8 Nm.

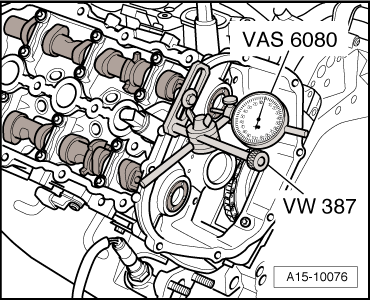

-- Secure the VW 387 with the VAS 6079 on the cylinder head as shown in the illustration.
-- Press camshaft against dial gauge by hand.
-- Set dial gauge to "0".
-- Press camshaft off dial gauge and read the value:
- Axial clearance: 0.100 to 0.191 mm.
