Supercharger Ribbed Belt: Removing

WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, and 2010 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Engine Cover -1- And -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front engine cover -1- upward.

-- Remove the front noise insulation -1-. Refer to NOISE INSULATION .

Fig 2: Identifying Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

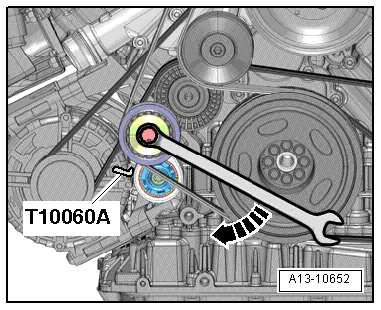

Fig 3: Securing Tensioning Element With T10060A To Remove Ribbed Belt

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of destroying due to reversed running direction on a used ribbed belt.

Before removing the ribbed belt, marking running direction with chalk or felt-tip pen for reinstallation later.

-- Pivot the tensioner clockwise -arrow- to release the tension on the ribbed belt.

-- Remove the ribbed belt and secure the tensioning element with T10060 A.
