Supercharger Ribbed Belt TENSIONER: Removing

WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, and 2010 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

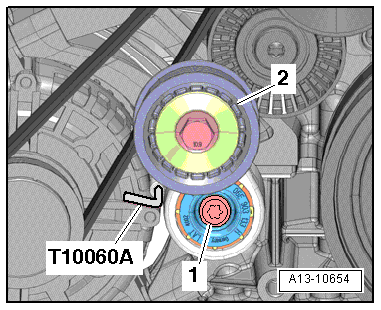

Fig 1: Identifying Ribbed Belt Tensioner -2- And Bolt -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Air Conditioning (A/C) compressor ribbed belt. Refer to SUPERCHARGER RIBBED BELT .

-- Remove the bolt -1- and remove the ribbed belt tensioner -2-.
