Ribbed Belt TENSIONING Damper, Vehicles With Electro-Mechanical Power Steering: Removing

WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, and 2010 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Engine Cover -1- And -2-

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Risk of injury through fan turning on automatically.

The radiator fan can come on even when the ignition is turned off, for example, caused by the heat still in the engine compartment.

-- Remove the front engine cover -1- upward.

-- Remove the bolt -2- on the left front coolant pipe.

Fig 2: Identifying Coolant Pipes

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The installed position is shown in the illustration with the engine removed.

Ignore -1-.

-- Remove the front noise insulation -1-. Refer to NOISE INSULATION .

Fig 3: Identifying Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- on the left front coolant pipes.

Fig 4: Locating Lower Coolant Pipe Bolt

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The installed position is shown in the illustration with the engine removed.

Ignore -arrows-.

-- Remove the cylinder head coolant valve -N489- -arrow- from the bracket and move it to the side.

Fig 5: Identifying Cylinder Head Coolant Valve And Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Pivot the tensioner clockwise -arrow- to release the tension on the ribbed belt.

Fig 6: Pivoting Tensioner Clockwise To Release Tension On Ribbed Belt

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ribbed belt from the tensioning element and release the tension on the tensioning element.

NOTE:

Ignore T10060 A.

-- Remove the cover from the tensioner.

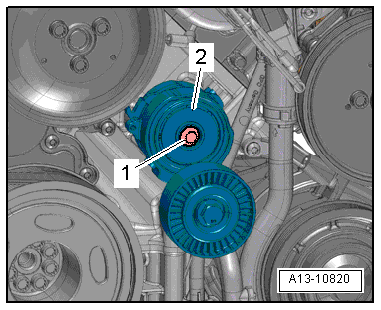

Fig 7: Identifying Ribbed Belt Tensioning Damper -2 And Bolt - 1

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- and then remove the ribbed belt tensioning damper -2- from the cylinder block.
