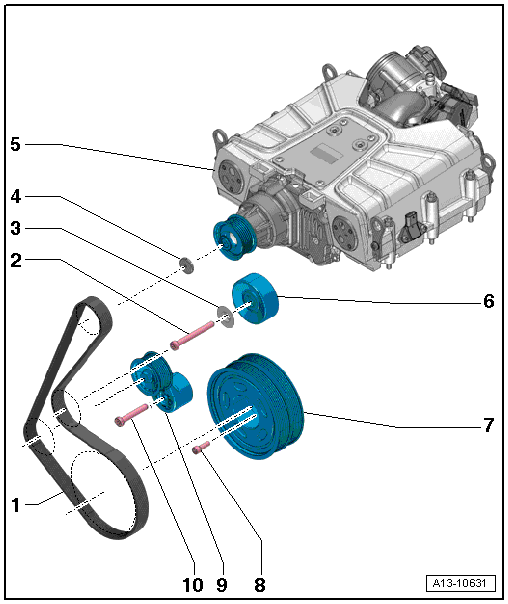

Supercharger Ribbed Belt Drive Overview
WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, and 2010 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Supercharger Ribbed Belt
- Check for wear
- Removing and installing, refer to SUPERCHARGER RIBBED BELT
- When installing, make sure it is seated correctly on the ribbed belt pulleys
- Bolt
- 42 Nm
- Washer
- Cover
- Supercharger
- Overview, refer to SUPERCHARGER OVERVIEW
- Idler Roller for Ribbed Belt
- Vibration Damper
- With double ribbed belt pulley
- Installation is only possible in one position because of the offset holes
- Removing and installing, refer to VIBRATION DAMPER
- Bolt
- Tightening specification, refer to item 2: 2
- Ribbed Belt Tensioning Damper
- Removing and installing, refer to SUPERCHARGER RIBBED BELT TENSIONER
- Bolt
- 40 Nm
