Backrest cover and padding, removing and installing: Notes
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

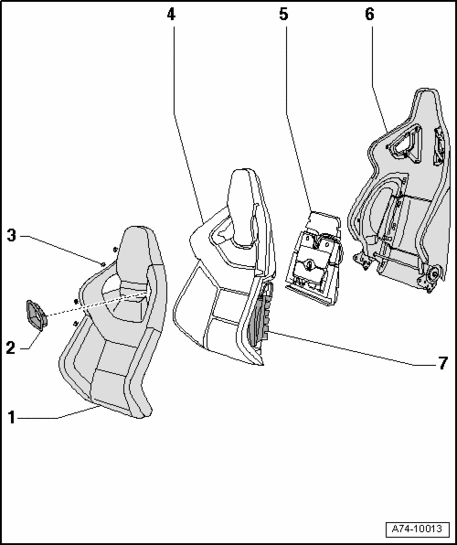

1 - Backrest cover
Removing
- Remove seat → Seat, removing and installing .
- Remove the backrest → Front seat backrest and seat pan, removing and installing .
- Remove both outer parts of belt guide Outer part of belt guide, removing and installing .
- Pry grip channel at edge of backrest cover - 1 - all around out of guide at backrest - 6 - Pry grip channel for backrest cover out of guide .
- In bending sections, grip channel is also secured using retaining clamps - 3 -, carefully remove retaining clamps.
- Carefully loosen seams of backrest cover from Velcro fastener at backrest cushion - 4 -.
- Disengage lower retaining strip at pneumatic block - 5 -.
- Remove backrest cover.
Installing
Installation is reverse of removal.
2 - Belt guide, outer part
- Removing and installing Outer part of belt guide, removing and installing
3 - Retaining clamps (8x)
- For grip channel of backrest cover
- Install in bended section of backrest
4 - Backrest padding
Removing
- Remove backrest cover - 1 -.
- Disengage flaps for backrest bolster inflation adjustment - 7 - at retaining bracket of backrest Disengaging flap for backrest bolster inflation adjustment .
- Disconnect pneumatic hose to backrest bolster inflation adjustment.
- Remove backrest cushion from backrest.
Installing
Installation is reverse of removal.
5 - Pneumatic block
Removing
- Remove backrest cover - 1 -.
- Remove backrest cushion - 4 -.
- Carefully loosen bonding of pneumatic block from backrest.
- Swivel pneumatic block toward front at upper edge.
- Free up electrical wiring harness.
- Remove pneumatic block.
Installing
Installation is reverse of removal.
- If necessary, replace double adhesive tape .
- Assignment of pneumatic block → Pneumatic block - component assignment
6 - Backrest
- Removing and installing → Front seat backrest and seat pan, removing and installing
7 - Flap for backrest bolster inflation adjustment
