Lock cylinder, removing and installing

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 Audi S4, 2008 Audi RS 4, 2008 Audi A4, 2007 Audi S4, and 2007 Audi RS 4. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Lock Cylinder Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removal:

Remove bolts - 2 - (2x) of lock trim - 3 -.
Detach lock lever from below from catches (2x).
Pry off top of lock lever using screwdriver.

Installing:

Installation is reverse of removal.

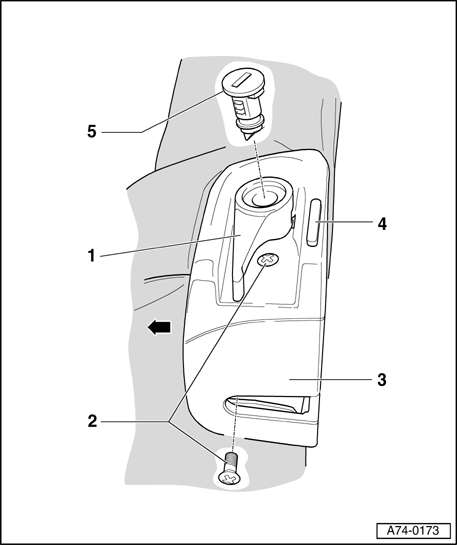

Fig 2: Lock Cylinder Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Lock lever

2 - Bolts

3 - Latch trim

4 - Latch trim

When rear backrest is locked, pin - 1 - is 2 mm above lock trim.
If rear backrest is not locked, pin lies approx. 20 mm above lock trim and a red mark is visible.

5 - Lock cylinder

To remove and install the lock cylinder, ignition key must be inserted.
